The Caterpillar landfill compactors are benchmarks in waste-handling machinery. When you need outstanding capacity and machine reliability, purchase CATERPILLAR 836G landfill compactors for sale. These G-series compactors have a 120,000+ lb operating weight, a 562 hp C18 engine, and a durable drum tip.

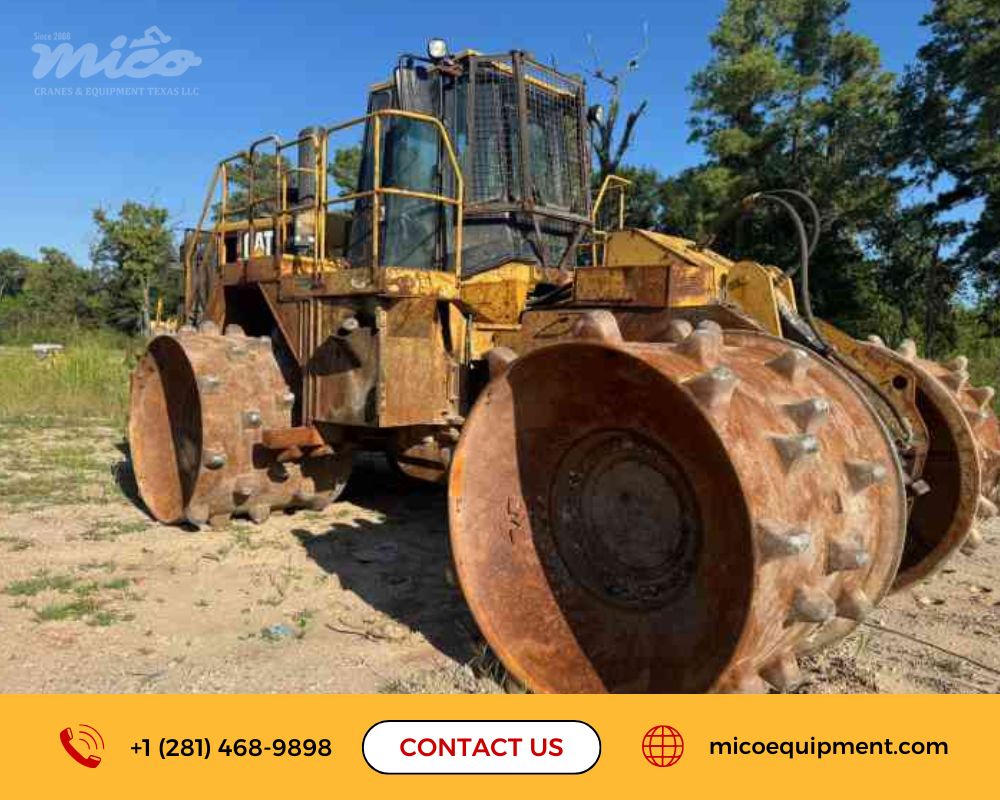

Mico Cranes and Equipment, TX, has this 836 (G-series) with CAT field-tested heavy-duty performance and a strong customer support network. It can deliver exceptional throughput in landfill and waste management operations with good resale value.

Key Specifications for Caterpillar 836G / 836 Landfill Compactor

Caterpillar products are renowned for their durable structure, reliable performance, operator comfort, and strong market demand. The values mentioned below are extracted from recent data published by authentic sources. These figures can help you evaluate a landfill compactor to check its suitability for your project needs.

Specification	Value	Notes
Engine Type	Cat C18 powered with Diesel comply with Tier 4 Final / Stage V	A diesel fuel engine can produce high torque for heavy-duty tasks.
Engine Net Power	502 hp (419 kW)	Constant power is needed to handle regular operations.
Gross Torque (generated at 1,400 rpm)	2,275 lb-ft	It’s an optimal value for managing heavy pushing and compacting forces.
Operating Weight	124,063 lb (56,275 kg)	It is the average weight of the machine with full tank capacity.
Maximum Operating Weight	126,364 lb (57,318 kg)	Fully loaded condition, along with the attached blade.
Transmission	Powershift transmission with automatic clutch control.	Enable the compactor to perform heavy-duty operations.
Travel Speeds	4-8 mph with multiple forward and reverse gear modes.	Provide various compaction powers and maneuvering strength.
Drum Features	Multiple patterns like paddle, diamond, chopper, and mixed design.	Handle different types of landfill compactions and a variety of waste materials.
Drum Width	4.59-4.70 ft	This width is adequate to cover a larger area in a single pass.
Ground Clearance	2.0-2.1 ft	Helps for stable mobility over uneven surfaces.
Hydraulic System	Double lifting cylinders with 79 gpm fluid flow.	Enables smooth lifting and positioning of the blade for clearing waste piles.

1. Powerful Engine

Compactors compress the heavy bundles of dumping piles in waste management facilities. Caterpillar integrates its compactors with Cat C18, which is fueled with diesel to generate constant torque for large-scale operations. According to the SAE / ISO standards, it delivers 562 hp gross / 496 hp net power and meets Tier 4 Final / Stage V air emission codes.

2. Heavy-Duty Structure

The robust construction of powershift transmissions, revised axles, and locker differentials makes the used landfill compactors for sale in Houston, TX, an optimal choice. Moreover, multiple forward and reverse gear modes provide uptime even in challenging terrains.

CAT compactors have high ground clearance to navigate the steep slope areas of dumping sites. As these machines have to function in muddy zones, specialized designs of guards are installed over the chassis, axle, and engine fan.

3. Advanced Compaction Technology

Standard Cat Compactors have embedded technologies for compaction thickness and density control. Advanced Pass Mapping Programs are installed, which include a GNSS sensor, intuitive display screens, and real-time commanding to facilitate uniform compaction coverage.

Optional Elevation Mapping is connected to manage the on-site control of compaction slope and layer thickness management. This innovation improves work efficiency, reduces fuel consumption, and improves waste heap compaction.

4. Operator Comfort

An enclosed cab with controlled temperature, low vibration, and soundproof shielding enhances the operator’s comfort and productivity. The front wide screen gives a complete view of the working drum, and an array of surveillance cameras improves mobility.

CAT compactors have a single joystick for Steering and Transmission Integrated Control for operator ease. The sound is regulated within 72 dB(A) inside the cab, and the engine fan is guaranteed to reduce the external noise level.

5. Improved Transmission Features

The transmission system has an electronically locked clutch paddle regulated by a torque converter to reduce the chances of overheating. This automation monitors power transmission over slopes and shift points. CATERPILLAR 836G landfill compactors for sale provide improved traction over various terrains.

6. Maintenance and Safety

The manufacturer fortified this model with ground-level service points for the user’s convenience. Moreover, the least demand for maintenance reduced the downtime and improved on-site productivity and operators’ comfort.

Digital meters for coolant, engine oil, and hydraulic fluid enable the drive to manage them efficiently. Radiators have sealed outlets to reduce the accumulation of debris, thus reducing the regular upkeeping services.

7. Wheel and Tip Configurability

Different patterns are embedded over the rotary drum that are interchangeable according to the needs of the proposed operation. Paddle, Plus, Diamond, Chopper, and Combination wheel tips are used depending on the compacted waste shape and moisture level.

Applications of the Caterpillar 836 Landfill Compactor

Based on real-world data, these landfill compactors work effectively and are listed to complement engineering updates and best-practice environments. Here are some use cases of the Caterpillar 836 landfill compactor

• Solid Waste Landfills

These compaction machines are primarily used in municipal and industrial landfills and dumping sites to compress heaps of trash and mixed waste. The CAT 836 is durable and built with a powerful engine and wheel configuration.

Different drum tips chop, layer, and compact the desired materials. For flawless dumping site composition, the Cat Compact with Pass Mapping effectively reduces trapped air, which can be hazardous in some cases.

• Operations of Landfill Construction

Remarkably, the 836 facilitates the daily dumping and dispersion of rubbish, lessening air bubbles and odors in municipal waste. The second-hand CAT landfill compactor for sale in Houston provides even coverage, with a wide rotating blade and wheel designs. This model is suitable for daily operations with minimum maintenance services.

• Slope Construction and Management

The plus or combo tip’s stable pattern contributes to lateral-slope navigation in slanted-faced landfill sites. The 836 is made to continue operating safely and effectively in inclined spaces. Moreover, with Compact Elevation Mapping, field staff regulate the even thickness of layers that comply with regulations.

• Waste Management / Transfer Stations

Large amounts of garbage are momentarily stored in storage sites before being transported to the main dump. To lower the volume and expense of transportation, the 836 is employed to pre-compress, disperse, and shrink these loads. The durable design and debris control guards enable these compactors to work for extended periods.

• Environmental and Regulatory Compliance

The 836’s telemetry pass monitoring and contour mapping assist landfill operators in meeting regulatory codes. These compactors are reliable sources for conducting precise operations that can comply with strict legislative frameworks. Moreover, its powertrain system follows Tier 4F, Stage V air emission standards.

• Multi-Cycle Waste Streams

CAT 836 G’s powershift transmission with locker differentials can outperform in high-throughput landfill sites. With minimal downtime, it can handle large-scale dumping and compaction operations in challenging sites. The diesel C18 engine can generate compact torque without overheating.

Why Choose the Caterpillar 836G Over Other Brands

Indeed, investing in CAT products always gives you a better return with long-lasting durability, resale value, and less downtime. The same applies to Caterpillar 836G; its purchase is a strategic move to upgrade your waste management fleet with valuable assets.

1. Engineered for Landfill Operations

Landfill sites are the most challenging, as workers must face slippery terrain while delivering precise results. CAT is the pioneer in developing specialized compactors for landfills. However, the other market-available options are modified versions of simple dozers or loaders.

This special edition has a powerful engine, a guarded undercarriage, and flexible wheel tips to navigate harsh underfoot conditions. 836 G stay active for a long time with fewer repair expenses.

2. Unmatched Resale and Retention Value

Caterpillar machines have reliable performance and excellent resale value due to:

• Worldwide proven reliability.
• Strong dealership network and parts availability.

Unlike many competitors, previously owned Cat 836 for sale can perform well even after completing 10,000+ operational hours.

3. Built-In Technology Ecosystem

The conventional machines used in landfill sites are not specially designed for it. This compactor is the first to have factory-installed landfill compaction technologies. It includes

• Pass Mapping and Elevation Mapping
• Enhanced Vision Systems
• Wheel Tip Pattern
• Protective Guards

This means there is no need to retrofit simple dozers or loaders for waste management. Purchase CATERPILLAR 836G for a complete solution for landfill and waste management sites.

4. Global Network and Parts Availability

In fact, the dump sites are operated 24/7 and need machines with no downtime. For more assistance, CAT products have assurance of professional support anytime and anywhere.

• Certified technicians support
• Genuine spare parts availability
• Built-in remote diagnostic systems

This global networking makes the Caterpillar company distinctive from other brands.

5. Optimized for Long-Cycle Applications

Landfill compaction machines must tolerate harsh, hot, corrosive, and humid conditions with 12+ hour shifts daily. The Cat 836 is designed to operate continuously without machine failures with reinforced chassis, axles, and drivetrains. However, comparable competitors fail to meet such risky situations.

6. Ergonomics and Safety Compliance

Operator fatigue is a hidden factor that can impact the overall productivity of landfill operations. The Cat landfill compactors lead with:

• Integrated transmission connectivity with steering control is operated with a single joystick.
• Effective soundproof operator cabin.
• Tier 4 Final engine for minimal air emissions.

Only a few brands are compatible with such ergonomic features, and their initial costs are too high compared to the CAT 836 G.

7. Waste Management Compliance

The Cat calibrated its compactors to automatically monitor and control compaction thickness and slope gradient, delivering reliable results quickly. This special built-in fabrication doesn’t need external modifications and controls the total ownership cost.

Maintenance & Operational Tips For 836 Landfill Compactor

Here’s a professional tip to keep landfill compactors performing well for extended periods. The data is extracted from reliable sources outlined by certified technicians using real-world scenarios.

Category	Tip	Benefit
Daily Inspection	To start operations, perform a daily walk-around inspection of the drum, tiers, and fluids.	Early detection of warning signs that lead to reduced downtime.
Wheel and Tip Care	They are the most valuable parts and get cracks or damage frequently. Clean them after the daily shift.	Maintain stable traction and constant compaction density.
Hydraulic System	Check the connected pipes, valves, and pumps. Use a detection meter for proper fluid pressure.	Conduct smooth and even blade mobility to manage reliable outcomes.
Cooling System	Regularly clean the radiator, engine fan, and chassis guards to prevent debris buildup.	Critical for regulating overheating in demanding dumping sites.
Transmission	Follow the CAT instructions to change engine oil and fluids and use premium materials.	It extends compactors’ overall lifespan and requires repairs.
Operator Cab	Keep the cab interior clean and check the HVAC performance and the accuracy of the dashboard buttons and joystick.	Protects against occupational hazards and improves productivity.
Load Management	Avoid incidents of over-compaction by properly following pass mapping guidance.	Reduce fuel consumption and premature wear on the compaction wheel.
Slope Operation	Keep blade movements and machine speed under observation while navigating slopes.	Reduces damage to essential parts of the machine.
Scheduled Service	Follow Caterpillar instructions for Maintenance protocols.	Maintain optimal operational performance.
Telematics Monitoring	Use remote diagnostic systems for earlier detection of malfunctions.	Minimizes unexpected downtime.
Operator Training	Regularly arrange operators’ training and certification programs.	Reduces on-site hazards and costly errors. Ensures safety codes conformity.

Indeed, careful handling practices are vital to achieving optimal performance even of a brand-new machine. Moreover, with well-maintained use, the lifespan of a previously owned CAT landfill compactor for sale is improved by 105 years of its expected range.

Attachments and Customization Options for the Caterpillar 836G

By coupling them with compatible attachments, waste management authorities and dumping site managers can enhance compactors’ productivity and work efficiencies. Moreover, the CAT products are user-friendly and can be retrofitted to meet emerging challenges. Here, we enlist the commonly used add-ons and modifications to boost landfill compactors’ capabilities.

Attachment / Customization	Description	Advantage	Use
Wheel Tip Attachments	Cat provides a variety of tipping styles, such as combo paddle, plus, cutter, and diamond-shaped wheels.	Operators can pair tip style to material under compaction for the best mobility, compacted density, and axle usage.	Highly wet or dense garbage processing facilities, scrap metal sites, and city dumps.
Additional Blade	There are rotary blades with adjustable debris containers, semi-U or straight in design.	Increases the effectiveness of material spreading, allowing for quick layers with precision.	Slope cleanup, trash sweeping, and cover dispersion are done every day.
Guarding Packages	Robust framework shields, chassis cover, fan shaft shields, and axle skirts.	Reduces downtime and maintenance expenses by shielding important parts from expected damage.	Difficult landfill conditions and areas with a lot of garbage.
Cab Enhancements	Adjustments to the climate control system, air filtering, sound mitigation, and sealed cabin are optional.	Enhances safety while extended shifts, lessens operator stress.	Prolonged activities and settings with a lot of dust or noise.
Powertrain Options	Several engine variants include Tier 3, Tier 4 Final, or Stage V and cooling packages for cold climates.	Ensures adherence to regional laws and maximizes efficiency throughout various climates.	Global disposal facilities with varying climate or pollution standards.
Visibility Packages	Improve accessibility, object recognition systems, windshield cameras, and efficient light sources.	Increases safety in darkness and night shifts.	Large-scale locations with varying traffic flows and round-the-clock activities.
Counterweighting	potential counterweight modifications to enhance ground stability and traction.	Improves stability over uneven and sloping terrain.	Landfills with substantial surface materials or downward slopes.
Extended Service	single servicing spots, automotive lube systems, and instant fuel and diesel exhaust systems.	Prolongs machine life, increases maintenance effectiveness, and decreases breakdowns.	Machinery with long hours and little downtime.
Fire Suppression	Automated firefighting equipment with sensors and an operator’s bypass can be integrated or retrofitted.	Improves safety at hazardous waste sites that can contain combustible items.	Landfills that contain risky or hybrid waste streams.

Effective attachments or compactor alterations enable landfill managers to adapt to changing on-site needs. They will also optimize machine passes and lower operational expenses, increasing the machine’s lifespan and market value.

Unique Buying Tips for the Caterpillar 836G

In fact, used CAT landfill compactors for sale in Houston, Texas, are economical selections for waste management companies’ demanding operations. However, the myth that used machines are defective can be resolved with careful inspection. Hiring a certified technician to examine the underlying faults is not impossible.

Evaluate Frame and Blade Wear

In contrast to conventional earthmoving machinery, landfill compactors are subjected to regular extreme pressure and corrosive conditions. Look for indications of structural damage or worn-out areas in the chassis, wheel tips, and compaction drum. The physical conditions tell the actual story of the meter readings.

Inspect Wheel Tips Condition

An even surface of the wheel tip is essential to achieve the ideal compaction layer. A worn rotatory drum might result in uneven compaction, greater running expenses, and higher fuel usage. In fact, the replacement might be costly. Keep this in mind when negotiating.

Check the Drum Seals and Bearings

Drainage fluid and debris frequently introduce contaminants into the compactor’s sealants and bearings. Any play or leaking in the axle hubs indicates that future repairs may be necessary. Leave this machine as it needs complete overhauling.

Review Service History

The responsive hydraulic system is like a smooth traction and material compression bloodstream. Request thorough hydraulic service records, paying special attention to the times between filter and fluid replacements. Costly repairs may result from poor handling practices of the previous owner.

Assess Emissions and Cooling Systems

Landfills are dirty, scorching, and foul-smelling. Look for indications of heat-related deterioration in the radiator and cooling system. The engine fan should work effectively to maintain the well-being of the powertrain system.

Check for Installed Upgrades

Modifying the landfill compactor with the help of certified professionals will enhance its work efficiency and market value. Check the compatibility and accuracy of the retrofit and take a test drive to verify performance.

Confirm Undercarriage Stability

The compactor’s undercarriages must face uneven surfaces full of mud and dirt. Check them precisely; otherwise, they will cost thousands of dollars to repair. Inspect the articulation points for smooth mobility and free from rusting. Transmission and hydraulic systems need oil sampling analysis to detect hidden defects.

Find Used Landfill Compactors Near Me

Reliable compactors are essential for managing regular operations in waste management and dumping sites. The Caterpillar 836 landfill compactor for sale in Houston, Texas, is an economical and durable asset for landfill operations. It is specifically designed to handle heavy-duty waste compaction under high-temperature, corrosive, and humid conditions.

Mico Cranes and Equipment, TX, offers an optimal working 836G at a reasonable price. Contact us now to schedule a test drive and receive professional guidance.

FAQs

1. What makes the Caterpillar 836G most reliable for waste management?

The CAT company specifically designed this machine to handle the waste compaction process in landfills. These compactors are customized with a range of wheel tips selected according to the nature of the material under worked on. Moreover, integrated guards on critical parts are provided to reduce wear from continuous interaction with mud and dust.

2. How are operational technologies distinctive in the 836G compared to others?

Automated monitoring of machine performance, Pass Mapping, and Elevation Mapping are innovative CAT technologies. They provide real-time data on compaction area, thickness, and slope gradient. With this assistance, professionals have accurate results without the need for rework.

3. What safety features are built into the Caterpillar landfill compactor?

The 836G is fortified with an enclosed operator cab for a comfortable environment. Moreover, intuitive joysticks, ergonomic seats, surveillance cameras, and object detection systems reduce occupational hazards. Landfill sites are mostly humid, hot, and harsh surroundings, and compaction machines need ergonomic features.

4. Does regular maintenance improve the 836G lifespan?

Regular maintenance, including checking the cooling systems, powertrain parts, and wheel tips, is crucial to avoiding problems. This increases the vehicle’s lifespan, decreases unforeseen downtime, and ensures reliable performance. It is suggested that you use Caterpillar’s OEM parts and professional oil sampling and testing.
