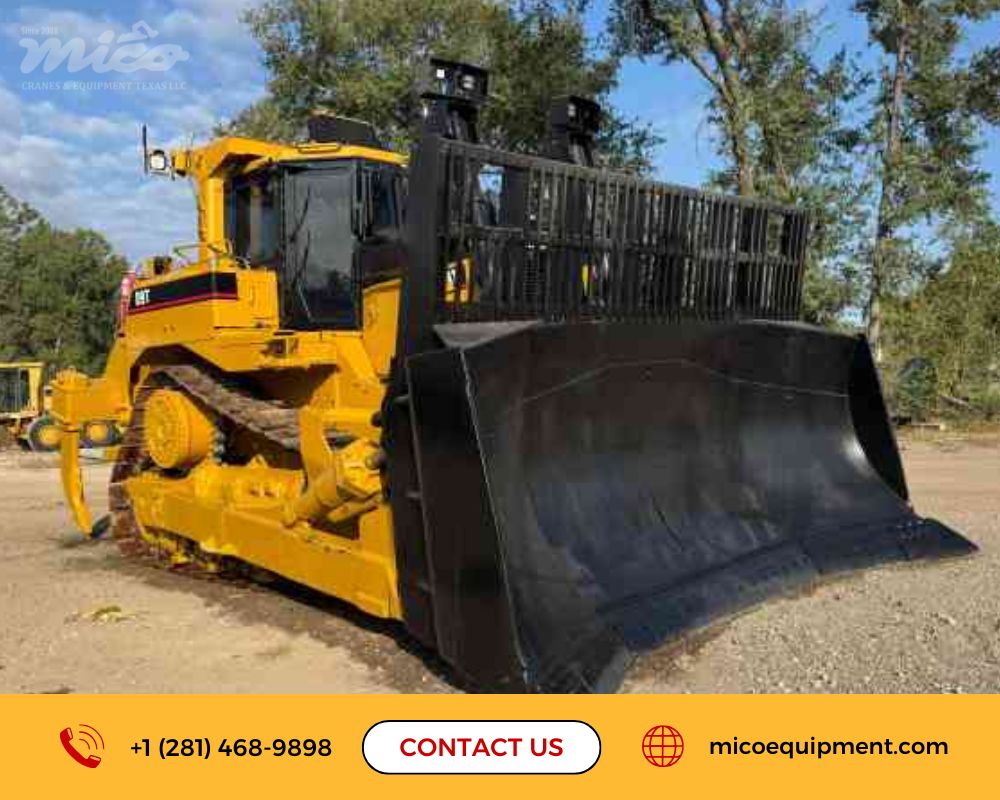

CAT D9T WH is a Waste Handler version of a Caterpillar crawler dozer. It has a powerful grading blade and a wide track to manage heavy-duty landfill and waste management operations. 2009 CAT D9T WH crawler dozer for sale, powertrain delivers 410HP to uphold 110,000 lbs operating weight.

It has a reliable cooling system, seal component, stable traction, and exceptional pulling power, which can handle abrasive conditions. Contact Mico Cranes and Equipment, TX, if you are searching for strength, efficiency, and safety in D9T WH backed by Caterpillar’s reputation.

Technical Specifications and Features of D9T-WH

Feature	Specifications
Engine	6-Cylinder CAT C18 ACERT (Installed Jan 2022 @ 28,215 hrs)
Net Power	410 hp (306 kW)
Operating Weight	48,361 kg / ~106,618 lb
Transmission	CAT Auto Shift and Differential Steering systems
Undercarriage	Elevated Sprocket Design
Ground Clearance	596 mm / 23.5 in
Blade Capacity	13.5 m³ / 17.7 yd³
Length with Blade	6,880 mm / 270.9 in / 22.6 ft
Track Gauge	2,250 mm / 88.6 in
Hydraulic System	3,800 psi (lift/tilt)
Cooling System	New radiator, fan drive, thermostat, and water pump 2022
Fuel Tank Capacity	821 L / 217 gal
Electrical and Cab	Alternator, batteries, A/C compressor, seat air system, and lighting circuits 2024–2025.
Fire Suppression	Certified System with a reliable hose

This D9T variant is designed for waste management practices with a secure system for extensive use in severe conditions.

1. CAT C18 ACERT Engine

Caterpillar fortified this special waste handler dozer with 6-combustion chamber CAT C18 ACERT engine that can deliver 410 horsepower (306 kW). Thus, the experts can generate optimal torque for exceptional pulling operations with low fuel consumption. For protection against dust and debris accumulation, it has a sealed part with an effective air-to-air aftercooling system.

2. Waste Handler Configuration

Specifically designed for a landfill, humid and hot environment with an effective traction system. D9T has a reinforced undercarriage with broad guarding pads to handle uneven and slippery surfaces. Moreover, in 2022, Mico Cranes and Equipment, TX, installed a new radiator, fan drive, thermostat, and water pump in 2012 D9T-WH. Contact us to purchase a secure version of a used waste handler crawler dozer for sale in Houston.

3. Elevated Sprocket Design

The elevated sprocket design is Caterpillar’s signature modification for stable mobility and machine safety. It protects the dozer from driving shocks and debris accumulations. This model offers smooth movement over harsh terrains of mining, construction, landfills, and waste management sites.

4. Advanced Operator Comfort

The manufacturer integrated a spacious cab that is fully air-conditioned with an air suspension seat for maximum operator comfort. The enclosed cabin with soundproof shielding lets the driver work long hours in dusty and high-temperature conditions. Similarly, this waste handler has advanced electronic controls and improved visibility features for job site safety.

5. Powertrain and Transmission

The CAT’s reliable power-shift transmission is regulated automatically to distribute power to both tracks equally. The automatic gear change reduces unnecessary fuel consumption and delivers optimal torque. Moreover, the differential steering system maintains smooth, consistent, and precise maneuvering.

6. Blade and Ripper

As the CAT fabricates this crawler dozer specifically to perform the heavy-duty operations of waste management authorities. D9T can couple with various blade configurations to manage pulling, pushing, and transporting operations. For dense hard surfaces, single or multi-shank rippers can be attached.

7. Simple Maintenance

The company constructed this model for longevity with a heavy-duty body frame and undercarriage. Thus, it can tolerate high-demand operations with less mechanical stress. Likewise, the simple ground-level service points for oil and filter change minimize operating cost and time. Built-in diagnostic systems reduce the chances of downtime.

Real-World Applications of CAT D9T WH Crawler Dozer

Indeed, the CAT D9T-WH model crawler dozers are purpose-built to support landfill operations and waste handling practices. However, its powerful engine and reinforced frame enable it to manage construction and extensive earthmoving projects. Here, we give an insight into its practical application in various industries.

Landfill and Waste Management

D9T can efficiently pull and compact the bulk of waste heaps in dumping sites. To support these operations, CAT integrate special features like:

• Guarded track parts and sealed cooling systems to protect machines against corrosive material interaction.
• High-capacity front blade with 17.7 yd³ to pull large volumes even in a single pass.

It is professionals’ most trusted design crawler dozer for municipal and industrial landfill sites to spread, collect, and compact waste aggregates.

Mining and Quarrying Sites

In open mineral pits, the D9T is used for ore extractions, to manage the overburden mining sites, and to stockpile materials for transportation. Its 410HP engine and wide, rugged undercarriage enable:

• Mining site management.
• Temporary access routes development by dozing the blasted rocks into a level surface.

Its wide track with 596 mm / 23.5 in ground clearance and equal weight distribution makes it reliable to maneuver on loose or rocky terrains.

Earthmoving and Site Preparation

The contractors deployed a 2009 D9T dozer for large-scale infrastructure development projects in construction and land clearance operations.

• Grading foundations for highways and industrial warehouses.
• Land reclamation and pushing heavy obstacles.

Guarded track with Auto Shift transmission manages the stable mobility over construction sites.

Construction and Civil Engineering

The D9T WH is ideal for heavy-duty civil works with exceptional pushing power.

• Deployed to pile up embankments, retaining walls, and dam developments.
• Support backfilling and surface leveling in utility installation operations.
• Demolition and Industrial Cleanup

The 2009 CAT D9T WH for sale is the best purchase for industrial demolition and cleanup projects. Its advanced air-air cooling system can outperform in a harsh working environment. It is used for:

• Push and stockpile the demolition waste.
• Clear industrial yards from debris and metallic scraps.
• Environmental and Land Restoration

After a catastrophe, the municipal authorities and reconstruction services use D9T WH because of its precise and stable mobility.

• Resurface and contour reclaimed land.
• Spread an even layer of soil over oil or chemical spills.
• Secure embankment strength for flood control preparations.

The D9T is the professional’s first choice for Caterpillar’s engineering excellence. It has a high-horsepower engine with sealed parts and advanced hydraulics to work in challenging conditions.

Why Choose the CAT D9T WH Over Other Crawler Dozers

Adding an appropriate crawler dozer with a compatible specification to your workload improves overall productivity and reduces operational expenses. The 2009 CAT D9T WH Crawler Dozer for sale in Houston, TX, has field-tested performance across challenging environments. Why landfill operators and contractors prefer the D9T WH:

1. Power and Efficiency

The D9T WH’s smart fuel consumption injector technology with 410 HP support manages optimal pushing power and torque with less operational expenses. Caterpillar’s ACERT technology and auto gear change generate power according to workload. It provides good drawbar pull and less air emissions.

2. Waste Handling Design

While many dozers have comparable engine and blade capacity, the D9T WH is factory-designed for waste management practice. Caterpillar integrates special debris protection pads, an efficient cooling system, and high ground clearance to shield against clogging and overheating. Purchasing a used CAT D9T crawler dozer reduces maintenance expenses with an extended operational lifespan.

3. Superior Durability

Caterpillar’s elevated undercarriage with concealed sprocket design reduces the impact of uneven and muddy terrains. The lubricated and padded track parts withstand abrasive conditions and keep the machine well-performing for a long time.

4. Operator Comfort

Other brand dozers focus on machine power, such as the CAT 2009 D9T, which has an improved cab interior and advanced operator comfort features. The air suspension seat, pressure control cab, and automatic control systems reduce driver fatigue. The Differential Steering System reduces machine tripping with smooth mobility and a tight turning radius.

5. Caterpillar Backed Reliability

Caterpillar is the global leader in providing durable engineering features with an extensive support network. This commitment offers ease of serviceability and professional repairs with genuine parts. Moreover, easy access maintenance points, modular parts, and remote telemetry assistance reduce downtime and improve productivity.

6. Resale Value

CAT dozers, particularly the D9T series, are factory-built as a waste handler variant for landfill operations. This model can perform well even after 20,000+ hours if handled with care and regular maintenance. Caterpillar’s engineering endurance makes D9T units a long-lasting investment with reduced operational expense.

Choosing the previously owned CAT D9T Waste Handler crawler dozer for sale in Houston gives a better ROI and excellent value retention. This unit stands distinctive from comparable variants for precise application and unique features.

Comparative Analyses with Market Available Options

Specifications	Caterpillar D9T WH	Komatsu D275A-5 Series	Liebherr PR 766 / PR 764 (Litronic series)
Engine Power	410 hp	410 hp	416–422 hp
Operating weight	105,600 lb	109,900	98,600–119,600 lb
Fuel capacity	889 L	840–890 L	840 L – 905 L
Blade capacity	13.5—16.4 m³	13.7–16.8 m³	13.6–17.0 m³
Typical Applications	Extensive landfill/waste-handler use with a global support network.	Comparable power and ideal for mining operations.	Hydrostatic drivetrains for heavy stockpile & quarry work.

Certified Technician’s Maintenance & Handling Guidelines

In dumping sites, the terrains are soft with excessive debris and sharp material, which can be effectively maneuvered with the D9T track system. High operating temperatures, corrosive liquids and leachate impact the integrity of the dozer’s working parts. Here, we suggest some careful handling tips:

1. Daily Pre-Start Inspection

Certified technicians recommend performing a walk-around inspection before starting operations:

• Fluid levels: Engine, transmission, and hydraulic oils should be up to the CAT-suggested levels.
• Fuel and DEF system: Replace the filters after the mentioned time, and check for leaks or contamination in engine oil each time.
• Undercarriage: Before starting work, inspect the track tension. There should be no loose bolts or damaged sprockets.
• Safety Features: Verify that working lights, surveillance cameras, horn, and alarm systems are operational.

Always give a warm-up start for 5 to 10 minutes in idle condition to optimise the engine and hydraulics temperature.

2. Engine and Powertrain Care

• Engine Oil Change: CAT is defined every 250 operating hours as replacing oil and filters. Always refill CAT DEO-ULS 15W-40 oil.
• Fuel Filters: The recommended time for filter changes is every 500 hours. Before replacing, completely drain the water separators and make them moisture-free.
• Transmission: After 1,000 operational hours, replace oil and filters. Check the deposit on the magnetic drain plugs that indicate issues in the clutch.

Deeply clean the radiator fan and side screens in landfill sites, where debris and dust accumulation is more frequent.

3. Undercarriage and Blade System

• Track Tension: Maintain track alignment, keeping a distance of 2 inches between the track shoe and the carrier roller.
• Lubrication: Grease rollers and idlers after every 100 hours.
• Blade Bushings: Use lithium-based lubricant, and notice unusual wear around blade arms.
• Cutting Edges: Replace the moldboard blade if damage exceeds 75% to prevent structural stress.

Periodic rotating of the blade cutting edges reduces 30% chances of premature wear and improves efficiency.

4. Waste Handler (WH)–Specific Features

The D9T WH variant is fortified with a particular design to manage the harsh surroundings of landfills:

• Clean track pads, undercarriage, and radiator fans to prevent overheating.
• Inspect fuel tank seals that waste fibers can damage.
• Lubricate blade ejector and guarding hinges.
• Ensure that air-to-air filtrations and blowers are working well.

After completing the task, clean the engine radiators with high-pressure air, not water.

5. Hydraulic and Electronic Systems

• Hydraulic Filter: The ideal time is after 1,000 hours, but if you observe pressure slagging, change it.
• Cylinder Rods: For waste handling practices, keep them neat and clean daily.
• Electronic Monitoring: Analyze the real-time performance data collected with the integrated Product Link / VisionLink system.
• Battery Terminals: Clean and apply dielectric lubricant.

Unexpected increase in hydraulic temperature is a clear sign of issues in fluid flow, stop working and resolve it.

6. Operating and Handling Practices

• Do not throw the blade with a jerk or move it sideways quickly. Maintain smooth, controlled, and gentle movements.

• During D9T maneuverability, keep consistent travel speed.
• Try to operate straight; excessive machine rotations halt track strength.
• Follow the CAT-defined load chart and cut overloading practices.
• Use Auto Idle, which will reduce unnecessary fuel burning.

Train your operators; only an experienced and competent driver can deliver optimal results and machine longevity.

7. Storage and Shutdown Procedures

• Store the D9T over a flat, clean, dry surface and drop the blade to ground level.
• If stored for over 30 days, plug off the battery terminals.
• For prolonged storage, drain the fuel tank and water separator and clean them.
•  Spray anti-corrosion chemicals to expose parts.

Proper handling and proactive maintenance practices improve the machine’s structural strength and reduce the chances of malfunctioning. Moreover, the occupational hazards at job sites are minimized. Keep a fair record of all servicing protocols for future correspondence.

Compatible Attachments and Modifications for D9T WH

Indeed, the CAT crawler dozers are engineered for multipurpose use. This built-in waste handler variant is valuable for municipal authorities and large-scale construction projects. However, various attachments and modifications are compatible with the 2009 D9T dozer to perform special tasks.

Blade Options for Different Job Requirements

Blade Type	Capacity	Uses	Benefits
Semi-Universal Blade	13.5 m³	Earthmoving and waste material pushing	Suitable for optimal load handling and ground cutting
Universal Blade	16.4 m³	Stockpile soft or loose aggregates	Improve 20% work efficiency over an ordinary blade.
Straight Blade	11.8 m³	Fine surface grading with less fuel consumption	To give a refined surface finishing and slope shape.
Coal Blade	25.1 m³	Light-density coal hauling is used with a counterweight for stability	Improved 35% productivity.
Landfill/Waste Blade	27–30 m³	Backfilling and compacting dumping sites.	Powerful blade with guard sealing.

The 2009 D9T for sale in Houston, TX, is a fortified factory-built design that supports quick attachment coupling and reduces 50% of the time involved in manual adjustments.

Ripper Configurations for More Ground Penetration

Type	No. of Teeth	Digging Depth	Uses
Single-Shank Ripper	1	4.0 ft	For hard rocks and frozen surfaces, perform foundation work.
Multi-Shank Ripper	3–5	2.5–3.0 ft	Mixed ground with hard demolition material and compact soil. It covers more in a single pass.
Adjustable Variable-Pitch Ripper	1–3	3.8 ft	The angle of the ripper is changed hydraulically.

Professionals add an automatic ripper depth control system for uniform operations and reduce fuel consumption.

Undercarriage Modifications for Precise Traction

Customization	Specifications	Use	Benefit
Heavy-Duty Track	28–36 in shoe width	Improve movement over soft and slippery landfills	Reduce the 15% chance of the dozer tripping.
Abrasion-Resistant Track	Sealed and Lubricated Track	For rock terrains	Increase track life by 25% more
Final Drive Seal Guards	Maximum protection	Suitable for the WH dozer series	Reduce dust and debris accumulation.

Maintain the track tension to a manufacturer’s desired limits. If over-tightening, it will need more energy to move and increase fuel consumption.

Technology Add-ons for CAT D9T

System	Function	Benefits
3D Grade Control	Auto-control over blade movement for uniform grading.	Improve 30% more precision and reduce the need for rework.
Auto Blade Pitch	Adjust the blade pitch with the carried load.	Improve 10% work efficiency.
VisionLink Enabled	Enable planning a grading job with real-time performance data analysis.	Manage idle time and need a module for connectivity.
CAT Productivity Kit	Monitor cycle time, load ratios, and push distance.	Manage operator trends in an extensive fleet management system.

The operators can reduce work cycles and fuel combustion with Grade Control and terrain analyses.

Protective and Performance Modifications

Modification	Advantages	Use
Radiator and Reversible Fan	Enhance the cooling system and manage 40% more overheating risk	Reduce debris accumulation
Dual-Stage Air Filtration System	Longevity of the engine’s lifespan	Engine strength enhancement
Sealed Cab Pressurization System	Improve operator comfort and ease	Control dust and smell inside the cab.
Rear Counterweight	Balance in heavy loading	Along with a ripper to reduce the chance of slipping.
Fire Suppression System	Reduce occupational hazards	In extremely hot landfill sites.

In waste management operations, the operator takes 1.5 hours to clean the radiator fan manually, so the automatic reversible g-fan cuts this extensive practice.

Safety Features Enhancements

Add-On	Benefit
Rear-view Camera	Compatible with D9T-WH variant
Work Lights	Halogen LEDs to improve night shift visibility.
Track Shoe Ice Cleats	Detachable to work over frozen land and steep slopes.
Seat with Integrated Controls	Improve productivity and operator ease.

Buyer Guide for Used CAT D9T-WH Crawler Dozer

Caterpillar Inc. is the worldwide accepted brand that produces durable machines with outstanding performance. Even their second-hand 2009 CAT D9T for sale delivers optimal results in landfill operations. The section of used machinery needs some technical know-how about the technical features of the required unit. Some checklist points are:

• Verify Specifications and Serial Number: Cross-match the technical details mentioned on the machine with the factory spec sheet.
• Meter Hours: The reading on the meter should complement its physical condition. Also, check the service log for regular maintenance.

• Undercarriage Condition: The most expensive and vital part of the crawler dozer checks the well-being of its rollers, track shoe, and sprockets.
• Hydraulic Leaks: Conduct the physical examination and pressure-test to verify its strength.
• Cooling System: The radiator, fan, and air compressors should perform well to handle severe temperature conditions of landfills.
• Blade and Ripper Condition: Replacement of blades needs a considerable amount of selection of the D9T with reliable blades and rippers.
• Confirm Fuel Tank and DEF Systems: It should have emission control DEF hardware to meet regional regulations.

Used CAT D9T WH Crawler Dozer Near Me

The CAT D9T is the best option in heavy earthmoving and landfill operations, a factory-built Waste Handler crawler dozer. With its reliable powertrain, cooling, and enclosed cab, operators can deliver optimal performance for long working hours.

Mico Cranes and Equipment, TX, has used a 2009 CAT D9T WH Crawler Dozer for sale, ready to perform large-scale landfill operations. It is compatible with various attachments to improve its efficiency and operational excellence.

FAQs

Q 1. Is the WH variant different from the standard D9T crawler dozer?

Waste Handler is Caterpillar’s original factory-fitted design, not retrofitted by professionals. CAT fabricated this dozer to perform specific operations of dumping sites and municipal waste management authorities. The company adds unique features like an efficient cooling system to perform heavy-duty operations for long working hours.

Q 2. What is the average fuel consumption of the CAT D9T-WH?

Under standard operational conditions, it consumes 18 to 22 gallons per hour. However, this pattern can be altered with terrain conditions, material density, and operator handling practices. An experienced and trained driver can reduce 10% fuel usage with blade movements and automatic idle modes.

Q 3. Under well-maintained conditions, what is the expected lifespan of D9T WH?

If the CAT D9T is handled with care and serviced regularly. It can perform well even after 20,000 operating hours.

Q 4. Does D9T follow Houston’ s-specific air emission standards?

Yes, the 2012 CAR D9T-WH crawler dozer has a 6-cylinder C18 ACERT engine that complies with Tier 3 and EU Stage IIIA emission standards.
